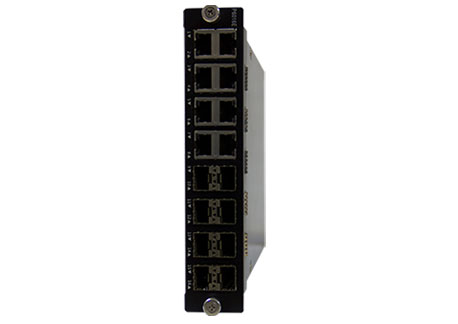

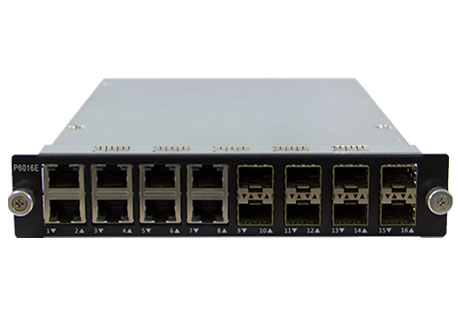

P6000 Series Test Modules deliver professional network testing functionality on BigTao series test platform with high performance and availability. P6000 series are specialized developed for comprehensive and automated testing of networking devices on production line, providing the best cost-effective testing solutions on 2nd Layer protocol testing
The V2-100G series module is a new generation test board of Xinertel with a global leading architecture, which can meet the needs of equipment manufacturers from basic functional testing to performance testing of high density ports. At the same time, it can verify whether the network system can achieve the expected goals when deploying network solutions in enterprises, ISP and data centers.
Key Features
· QSFP28 100G native interface
· Compatible with 40G / 100G interface
· Detachable support 10G / 25G interface
· Support layer 2-3 traffic test and protocol simulation
· Support 100% line-rate traffic generating , statistic and capture based on FPGA
· Support RFC2544, RFC2889, RFC3918 benchmark test
· Support Chinese and English test operation software
· Support Chinese and English test report system
Specification list
| Hardware and electrical characteristics | |
| Port rate | Optical port: 100G/40G/25G/10G |
| Port density | Up to 4 interfaces in a single slot |
| Interface standard | 100G:100GBASE-SR4,100GBASE-LR4; 40G:40GBASE-SR4,40GBASE-LR4; 25G:802.3by 25GBASE-SR; 10G:10GBASE-SR; 100G FEC: 100GBase-SR4 RS-FEC91; 25G FEC: 25GBase-SR RS-FEC108,25GBase-SR FEC CL74,25GBase-SR RS-FEC CL91. |
| Port occupation | Occupied by single port |
| Rate switching | Two ports are grouped, and the rate is switched according to the port group |
| Module weight (kg) | 1.2 |
| Module size (width* height * depth) | 196mm x 35.5mm x 271mm |
| Range of working temperature | 0° C to 35° C |
| Working relative humidity | 20% to 85% |
| Maximum power consumption | 48 watts |
| Traffic Generation | |
| Stream per port | 100G/40G: 1024 25G/10G: 256 |
| Frame length (bytes) | 64-16383 |
| Frame length type | Support fixed, increasing, decreasing, random, automatic, IMIX and other frame length types |
| Jump | Each stream supports 4 jump fields; Support fixed, increasing, decreasing, list and random jump modes. |
| Transmit mode | Port-based Continuous transmission, Burst and Time burst Flow-based Continuous transmission and Burst |
| Load profile type | Port speed regulation and flow speed regulation |
| latency and jitter settings | Four delay test modes are supported: LIFO (Store-and-Forward), FIFO (Straight-Through Switching), LILO and FILO |
| Frame timestamp resolution | 8 nanoseconds |
| Stream Template | Built-in message templates, such as VLAN, ICMP, PPPoE, GRE, DHCP, L2TP, IPv6, MPLS, GTP, GOOSE, VXLAN, OSPF,TCP,UDP... |
| Custom packet | User-defined messages are supported, and the edited message template can be saved; Checksum checking of custom fields is supported. |
| User-defined data | Support user-defined message import of 16 kbytes, in which the first 256 bytes support configuration jump |
| Flow Control | Full duplex flow control |
| Error frame | CRC error, oversize frame; |
| Traffic Statistics | |
| Stream per port | 100G/40G: 2048 25G/10G: 512 |
| Statistical mode | Statistics results can be displayed in the form of data table and graph. Statistics can also save Excel files automatically. |
| Statistics item (port) | Number of transmitted / received frames, transmitted / received frame rate, received bandwidth, Rx Filter Frames and custom statistics, FCS error statistics, TCP / UDP Checksum error, Rx Pause Frames, Port Average Latency Statistic, etc. |
| Statistics item (stream) | Number of transmitted/received frames, transmitted / received frame rate, received bandwidth , error frame statistics, real-time packet loss statistics, out-of-order statistics, latency jitter, and custom statistics, etc. |
| Statistical operation | Support sorting statistical results, performing mathematical operations such as addition, subtraction, multiplication, division, and custom paging statistics, etc. |
| Traffic Capture | |
| Capture space/port (bytes) | 32K |
| Capture type | Capture data and control plane receive frames;Capture the transmit and receive frames of the control plane;Frame capture based on filter template;Frame capture based on error packet;Support wrap capture;Support to specify the number of download capture packets |
| Protocol Simulation | |
| Routing | RIPv1v2,RIPng,OSPFv2,OSPFv3, ISISv4,ISISv6,BGP, BGP4+ ,LDP,MPLS L3VPN,VPLS,VLL,6VPE,6PE |
| Access | PPPoE Client/Server,DHCPv4 Client/Server,DHCPv6 Client/Server,DHCPv6 PD Client/Server,L2TPv2,802.1x |
| Multicast | IGMPv1/v2/v3, MLDv1/v2,IGMP/MLD Querier,PIM-SM |
| Carrier Ethernet | VXLAN,OpenFlow,OVSDB,EVPN,LACP |
| Data Center | Automatic configuration of BFD, 802.1ag, 802.3ah and IPv6 |
| Other | RFC2544, RFC2889, RFC3918, Asymmetric Testing, Intelligent Script |
| Test suite | RIPv1v2,RIPng,OSPFv2,OSPFv3, ISISv4,ISISv6,BGP, BGP4+ ,LDP,MPLS L3VPN,VPLS,VLL,6VPE,6PE |
| Software Platform | |
| Client software | Renix test platform: Support layer 2-3 traffic test and protocol simulation |
| API secondary development | TCL, Python3.x, GUIToTCL, GUIToPython |
| Interface language | English, Simplified Chinese |
| Hardware Platform | |
| Adapter chassis | BigTao220, BigTao6200 |
| Chassis operating system | Linux CentOS7.X |
